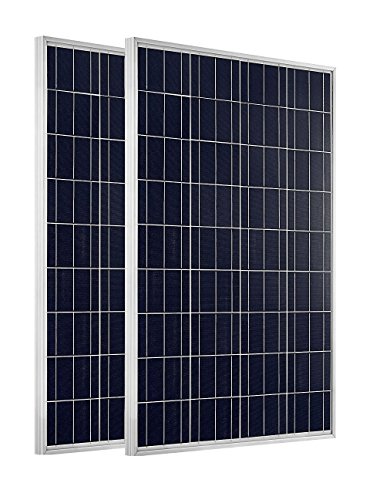

If you want for top recommended a ECO-WORTHY, then ECO-WORTHY 200 Watt Solar Panels Off Grid Tie System Kits: 2 x 100W Polycrystalline Solar Modul with 20A 12V/24V MPPT Solar Charge Controller for Charging 12 Volt or 24 Volt Battery is our suggestion. Many good reviews already proving the quality of this product. And also you are going to satisfy with the reasonable cost in case you compare with the other similar item which is on the internet. If you wish to know further of this products, just read its main features below. ( Check Price Now )
Product is very good!
- Basic component for resident on-grid system and off-grid system
- Widely used on marine, dry camp, Garden watering and other on-grid&off-grid applications
- Easy Installation with pre-drilled hole. By-Pass Diode minimized the impact of shade.
- Waterproof IP-65 Rated Junction Box : Advanced water and dust proof level (complete protection against environmental particles and low pressure water jets).
- Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa), Lightweight anodized aluminum frame and reinforced Safety and anti-Reflection coated glass 3.2mm thick (tempered + patterned)
Specification
Related power:100W
Voc:21.6V
Vop:18V
Short circuit current (Isc):6.11A
Working current (Iop):5.55A
Output Tolerance:±3%
Temperate coefficient of Isc:(010+/- 0.01) %/℃
Temperate coefficient of Voc: (0.38 +/-0.01) %/℃
Temperate coefficient of power :Voc-0.47%/℃
Temperature range :-40℃to +80℃
FrameHeavy duty aluminum
Kind of connectionwaterproof junction box, can be customized
Guarantee of power :90% within 10 years 80% within 25 years
Kind of glass and its thickness : Low Iron, high transparency tempered glass of 3.2mm
Battery Voltage :12V
Size:1000x665x35mm
20A MPPT Controller
Rated system voltage 12V/24V DC
Max open circuit voltage of solar panel :15-50VDC
Max solar panel power :300w 12V
Max output current :20A
Max discharge current :20A
Over discharge voltage :10.2-12.5V(+/- 0.2)
Restart voltage:10.2-13.5V(+/- 0.2)
Float voltage : 12.5-14.5V(+/- 0.2)
Converter type : Buck
Converter efficiency : >96%
Max increase efficiency : >43%
Tracking efficiency : >98%
Precision of clock : +/-50S/Month
Operating temperature :-20 to +50 degree C
Size :140mm*147mm*42mm(5.53*5.81*1.66in)
weight :550g(1.21lbs)
Packing Include
2 PCS 100 Watt Poly Solar Panel with 90cm 12 awg cables
2 pairs Solar Panel Mounting Bracket and Fastener Sets for 100w solar panel
1 pair Y2 branch cable with MC4 connector
1 pc MPPT 20A Charge Controller
1 set MC4 with 5 meter solar cables (red and black)
Title: ECO-WORTHY 200 Watt Solar Panels Off Grid Tie System Kits: 2 x 100W Polycrystalline Solar Modul with 20A 12V/24V MPPT Solar Charge Controller for Charging 12 Volt or 24 Volt Battery
Brand: ECO-WORTHY
